Description
A versatile aluminium LED lightbox designed for illuminated tensioned fabric graphics. The 60mm deep profile provides bright, even illumination while retaining a slim, contemporary appearance – ideal for retail displays, branded environments, exhibitions and interior signage.
Manufactured to your required dimensions, larger lightboxes can be supplied in sections with internal joining bars for easier transportation and straightforward on-site assembly.
Frame Specification

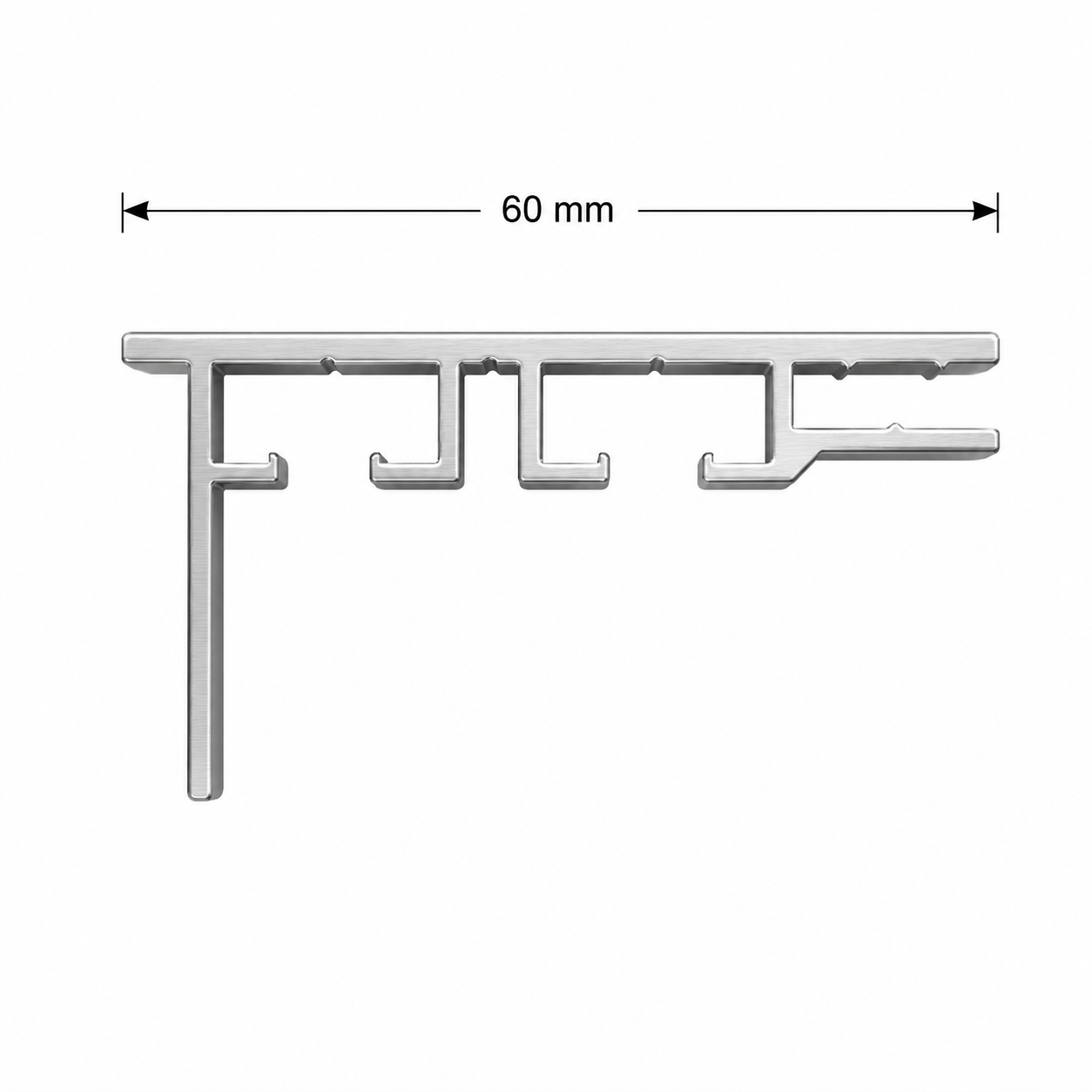

- 60mm deep aluminium profile
- Satin anodised silver finish as standard
- Optional powder coating to any RAL colour
- ACM back panel for LED mounting
- Manufactured to your required dimensions
- Larger frames can be manufactured in sections with internal joining bars
- Available flat-packed in kit form for easy transportation and on-site assembly

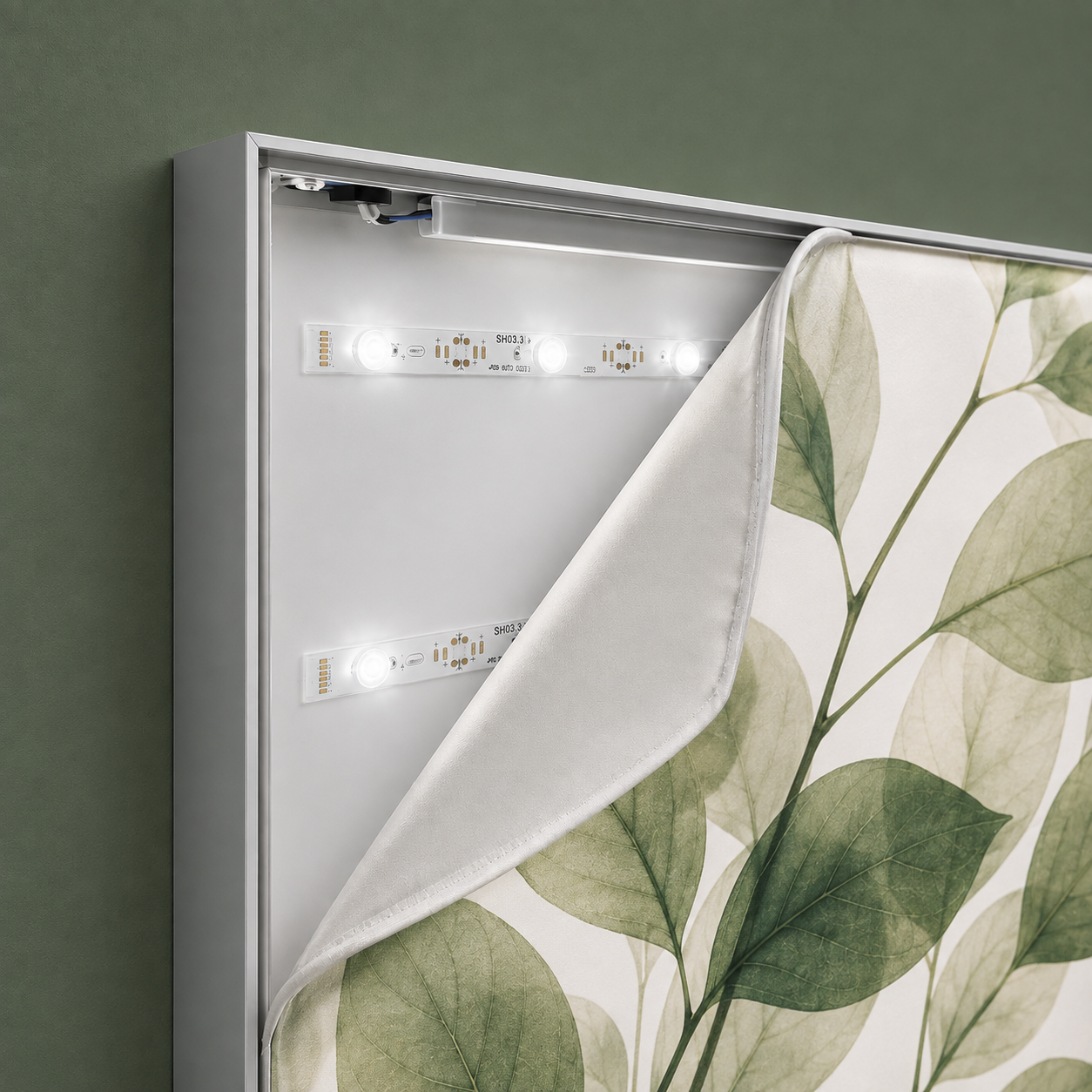

Illumination
- Backlit LED illumination
- Rigid LED bars
- 7000–8000K cool white LEDs
- IP20 rated
- 24V operating voltage
- Power supply positioned internally within the lightbox
- Hardwired or plug-and-play power options available
Fixing
- Designed for wall mounting as standard
- Fix directly through the back panel, taking care to position fixings between the LEDs
- Hanging eyebolts available on request
Graphics
- Designed for tensioned fabric graphics with silicone edging (SEG) to all four sides
- Graphics are easily removable and replaceable, ideal for changing campaigns and promotions
- Artwork should be supplied as a print-ready PDF with 25mm bleed to all sides
- Artwork guidelines available on request
