Description
A versatile aluminium LED lightbox designed for illuminated tensioned fabric graphics. The 75mm deep profile provides bright, even illumination and is particularly suited to larger-format displays where a more substantial frame and increased depth are required.
Manufactured to your required dimensions, larger lightboxes can be supplied in sections with internal joining bars for easier transportation and straightforward on-site assembly.
Frame Specification

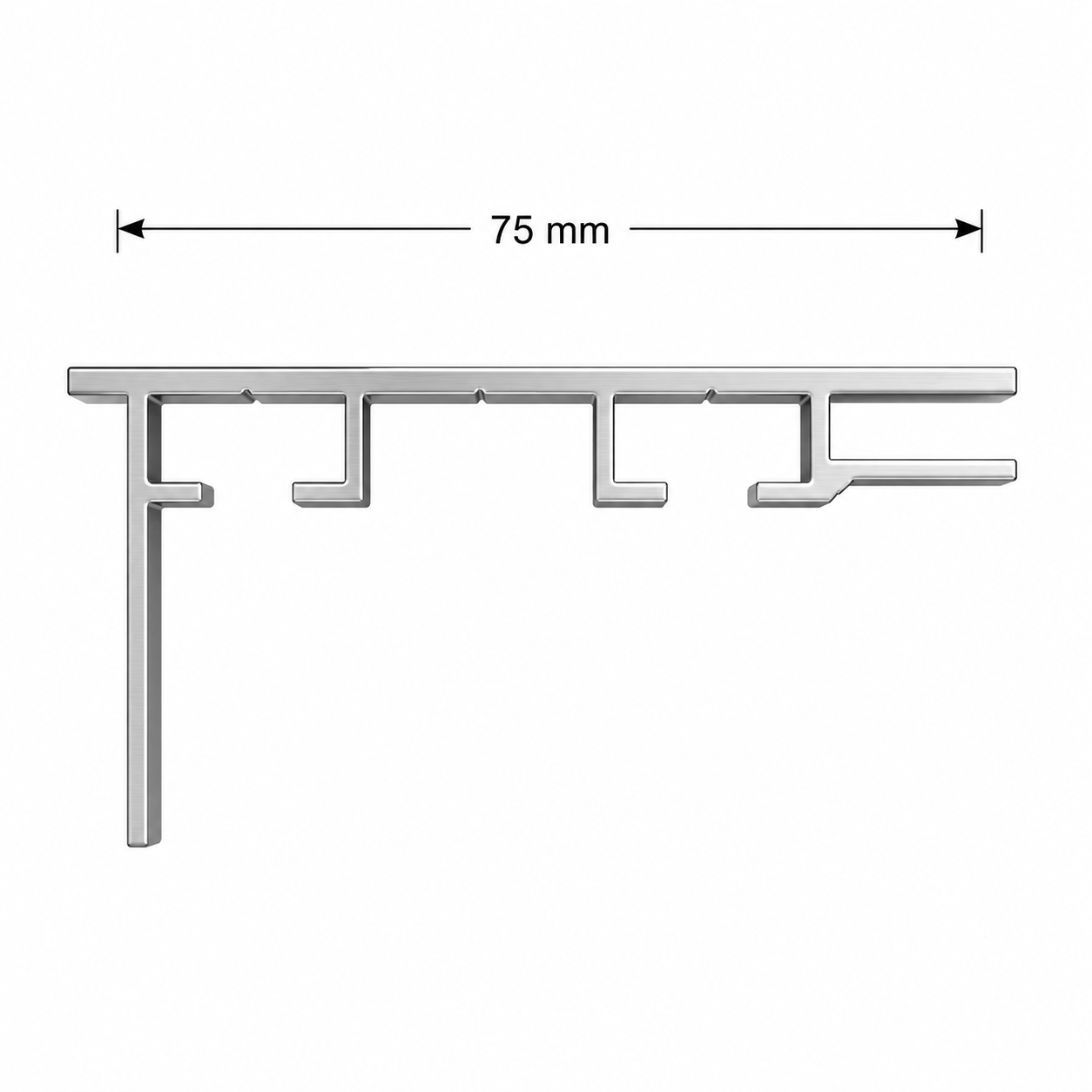

- 75mm deep aluminium profile
- Satin anodised silver finish as standard
- Optional powder coating to any RAL colour
- ACM back panel for LED mounting
- Manufactured to your required dimensions
- Larger frames can be manufactured in sections with internal joining bars
- Available flat-packed in kit form for easy transportation and on-site assembly

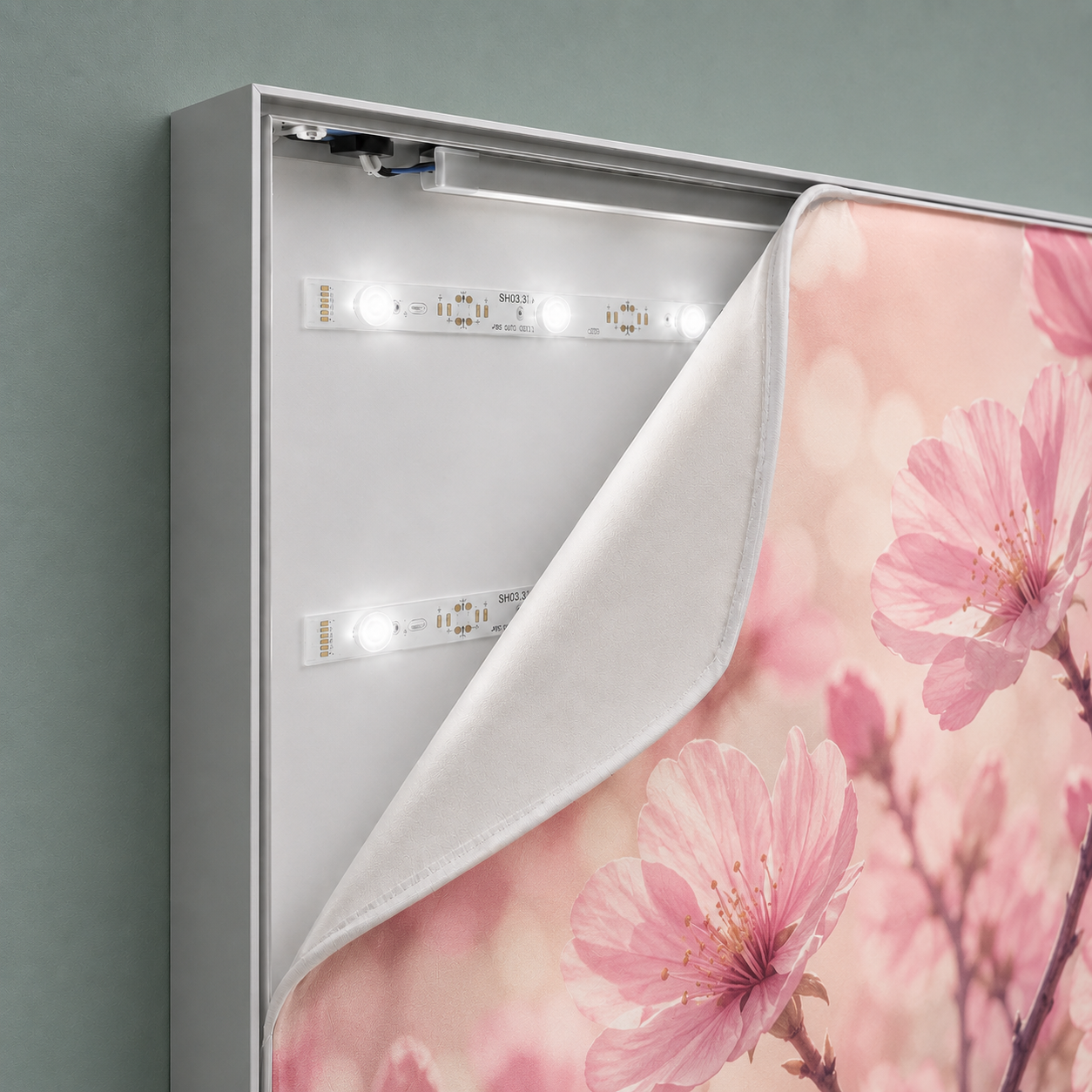

Illumination
- Backlit LED illumination
- Rigid LED bars
- 7000–8000K cool white LEDs
- IP20 rated
- 24V operating voltage
- Power supply positioned internally within the lightbox
- Hardwired or plug-and-play power options available
Fixing
- Designed for wall mounting as standard
- Fix directly through the back panel, taking care to position fixings between the LEDs
- Hanging eyebolts available on request
Graphics
- Designed for tensioned fabric graphics with silicone edging (SEG) to all four sides
- Graphics are easily removable and replaceable, ideal for changing campaigns and promotions
- Artwork should be supplied as a print-ready PDF with 25mm bleed to all sides
- Artwork guidelines available on request
