Description
A premium, double-sided LED lightbox designed for high-impact freestanding displays. The 150mm deep aluminium profile features side-mounted LED illumination, providing bright, even illumination across tensioned fabric graphics on both faces.
Ideal for retail environments, shopping centres, showrooms, exhibitions and other commercial spaces, the frame is completely freestanding and supplied with steel feet for stability.
Manufactured to your required dimensions, larger lightboxes can also be supplied in sections with internal joining bars for easier transportation and straightforward on-site assembly.
Frame Specification

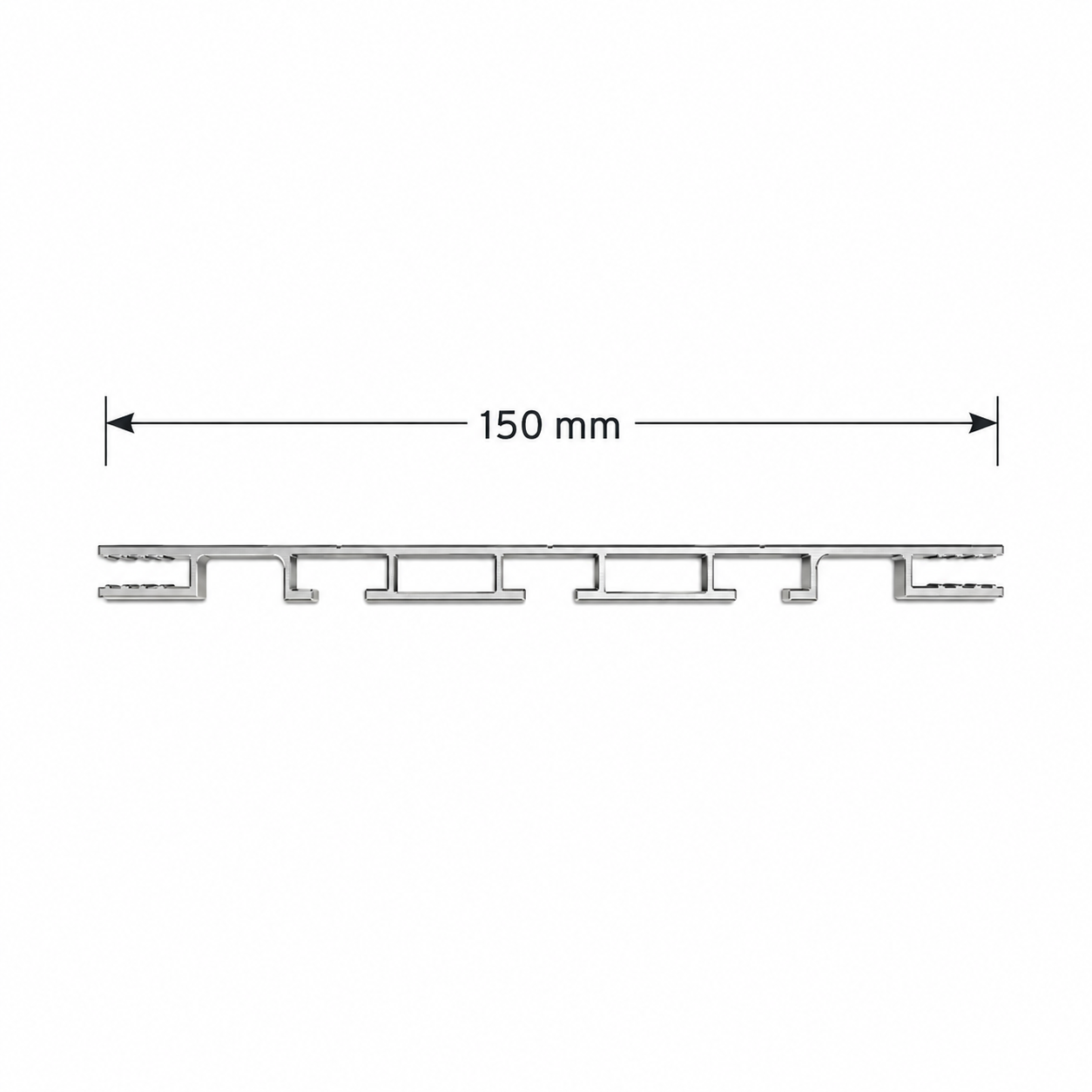

- 150mm deep aluminium profile
- Double-sided illuminated display
- Free-standing design
- Supplied with 600 x 100 x 6mm steel feet
- Satin anodised silver finish as standard
- Optional powder coating to any RAL colour
- No back panel required
- Manufactured to your required dimensions
- Larger frames can be manufactured in sections with internal joining bars
- Available flat-packed in kit form for easy transportation and on-site assembly
Illumination
- Side-illuminated LED system
- Rigid LED bars
- Pure white LEDs
- IP65 rated
- 24V operating voltage
- Power supply positioned internally within the lightbox
- Hardwired or plug-and-play power options available
Fixing
- Designed for free-standing use
- For larger displays, we recommend securing the frame to the floor through the steel base plates for additional stability
Graphics
- Designed for tensioned fabric graphics with silicone edging (SEG) to all four sides
- Double-sided design allows a different graphic to be displayed on each face
- Graphics are easily removable and replaceable, ideal for changing campaigns and promotions
- Artwork should be supplied as a print-ready PDF with 25mm bleed to all sides
- Artwork guidelines available on request
